Executive Overview & Vehicle Identity

• Segment: B-Segment Compact 7-Seater MPV
• Platform Architecture: Daihatsu New Global Architecture (DNGA-B)
• Internal Chassis Code: D27A
• Assembly / Origin: Rawang, Selangor, Malaysia (CKD)
• Trim Hierarchy: 1.5 X, 1.5 H, 1.5 AV

                       PERODUA ALZA (D27A)
 ┌─────────────────────────────────────────────────────────────────┐
 │ ENGINE: 1.5L 2NR-VE 4-Cyl DOHC Dual VVT-i (78 kW / 138 Nm)      │
 │ GEARBOX: Daihatsu D-CVT (Belt + Planetary Split-Gear)           │
 │ PLATFORM: DNGA-B High-Tensile Modular Chassis (Low-H-Point MPV) │
 │ PACKAGING: 7-Seater Layout | 137L Boot (Upright) / 498L (Folded)│
 │ ADAS: Standard PSDA (6 Airbags + AEB) | L2 ACC & LKC on AV      │
 └─────────────────────────────────────────────────────────────────┘

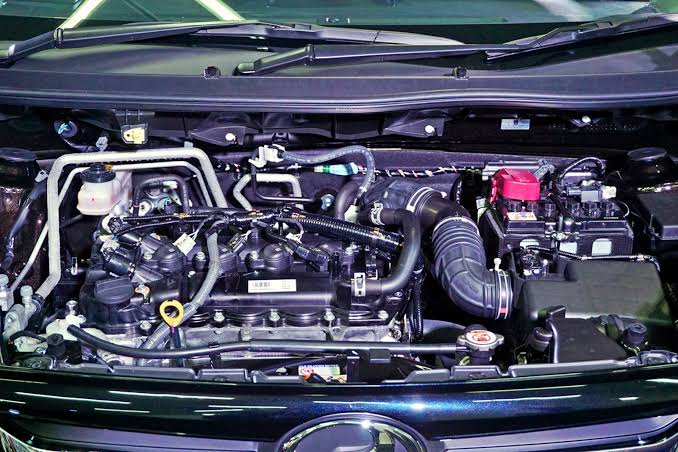

1. Powertrain & Combustion Architecture

All variants across the D27A Alza range utilize the naturally aspirated 1.5-litre 2NR-VE 4-cylinder engine, tuned with Dual VVT-i and an Eco Idle start-stop system to maximize fuel efficiency while carrying 7 occupants.

  [Dual VVT-i] ──► 16V DOHC Pentroof Head (11.5:1 CR) ──► 78 kW (106 PS) @ 6,000 RPM
  [Multi-Point]──► 72.5 mm × 90.6 mm (Long-Stroke)   ──► 138 Nm @ 4,200 RPM

• Engine Code: Toyota / Daihatsu 2NR-VE
• Cylinder Configuration: In-line 4-cylinder, transverse front-mounted
• Displacement: 1,496 cc (1.50 Litres)
• Bore x Stroke: 72.5 mm x 90.6 mm (Long-stroke / under-square geometry)
• Bore-to-Stroke Ratio: 0.80 (Optimized for low-to-mid-range torque response)
• Compression Ratio: 11.5:1
• Valvetrain: Double Overhead Camshaft (DOHC), 4 valves per cylinder (16 valves total), timing chain driven with Dual VVT-i (continuous variable timing on intake and exhaust camshafts)
• Fuel Delivery: Multi-Point Electronic Fuel Injection (EFI)
• Block / Head Material: High-pressure die-cast aluminum alloy block and cylinder head
• Maximum Power Output: 78 kW (106 PS / 105 bhp) @ 6,000 RPM
• Maximum Torque Output: 138 Nm (101.8 lb-ft) @ 4,200 RPM
• Specific Power Output: 52.14 kW/L (70.85 PS/L)
• Specific Torque Output: 92.24 Nm/L
• Start-Stop System: Perodua Eco Idle automatic idling stop system standard across all trims

2. Transmission & Driveline Kinematics

The D27A Alza pairs the 1.5L powerplant exclusively with Daihatsu’s Dual-Mode Continuously Variable Transmission (D-CVT), replacing the previous generation’s 4-speed torque converter.

• Transmission Type: Daihatsu D-CVT (Belt-driven CVT integrated with a planetary split-gear mechanism)
• Manufacturer: Akashi-Kikai / Daihatsu Motor Company
• Drivetrain Configuration: Front-Engine, Front-Wheel Drive (FF layout)
• Dual-Mode Operating Logic:
  • Belt Mode (Low-to-Mid Speeds): Traditional expanding/contracting pulleys provide smooth step-off acceleration and continuous variable ratio adjustment for urban commuting.
  • Split-Gear Mode (High-Speed Cruise): At sustained highway speeds, a planetary gear set engages via a clutch pack to transfer drive mechanically, reducing high-RPM belt slip and cutting thermal/parasitic friction losses.
• Manual Shifting: Gated shift lever with manual sequential mode (+ / – virtual steps).
• Drive Mode Selector (H & AV variants): Steering-mounted switch offering 3 operational modes: Eco, Normal, and Power (PWR).

3. Chassis, Suspension & Braking Dynamics

Built on the DNGA-B modular architecture, the Alza sits significantly lower than conventional ruggedized MPVs, prioritizing car-like dynamics, a low center of gravity, and high torsional rigidity.

Subsystem	1.5 X Specification	1.5 H Specification	1.5 AV Specification
Front Suspension	MacPherson Strut with coil springs & stabilizer bar	MacPherson Strut with coil springs & stabilizer bar	MacPherson Strut with coil springs & stabilizer bar
Rear Suspension	Torsion Beam axle with coil springs & dampers	Torsion Beam axle with coil springs & dampers	Torsion Beam axle with coil springs & dampers
Front Brakes	255 mm Ventilated discs	255 mm Ventilated discs	255 mm Ventilated discs
Rear Brakes	180 mm Mechanical Drums	180 mm Mechanical Drums	Solid Rear Disc Brakes
Parking Brake	Manual Handbrake (Cable)	Manual Handbrake (Cable)	Electronic Parking Brake (EPB) + Auto Hold
Steering System	Electric Power Steering (EPS)	Electric Power Steering (EPS)	Electric Power Steering (EPS)
Turning Radius	5.0 metres (10.0 m curb-to-curb)	5.0 metres (10.0 m curb-to-curb)	5.0 metres (10.0 m curb-to-curb)
Wheel Fitment	15-inch x 5.5J Alloy Wheels	16-inch x 6.0J Two-Tone Alloys	16-inch x 6.0J Two-Tone Alloys
Factory Tires	185/65 R15 (Hankook Kinergy Eco 2)	195/60 R16 (Toyo Proxes CR1)	195/60 R16 (Toyo Proxes CR1)
Ground Clearance	150 mm	160 mm	160 mm

4. Dimensions, Weights & Packaging

The Alza adopts an elongated low-roof profile for ease of ingress/egress while maximizing interior tandem legroom.

       ◄──────────────────── 4,425 mm (Length) ────────────────────►
       ┌───────────────────────────────────────────────────────────┐ ▲
       │   Row 1 (Driver)     Row 2 (Slide/Tumble)    Row 3 (Fold) │ │ 1,660–1,670 mm
       └──────┬────┬───────────────────────────────────┬────┬──────┘ ▼
       ◄─ 835 mm ─►◄──────── 2,750 mm (Wheelbase) ────────►◄─ 840 mm ─►

• Overall Length: 4,425 mm (+205 mm over 1st-generation Alza)
• Overall Width: 1,730 mm (+35 mm over 1st-generation Alza)
• Overall Height: 1,660 mm (1.5 X) / 1,670 mm (1.5 H & AV)
• Wheelbase: 2,750 mm
• Track Width (Front / Rear): 1,505 mm / 1,500 mm (1.5 X: 1,515 mm / 1,510 mm)
• Kerb Weight:
  • 1.5 X: 1,145 kg
  • 1.5 H: 1,155 kg
  • 1.5 AV: 1,170 kg
• Fuel Tank Capacity: 43 Litres
• Luggage Capacity (VDA Standard):
  • All 7 Seats Upright: 137 Litres (+54L vs Gen 1)
  • 3rd Row Folded Flat (50:50): 498 Litres (+150L vs Gen 1)

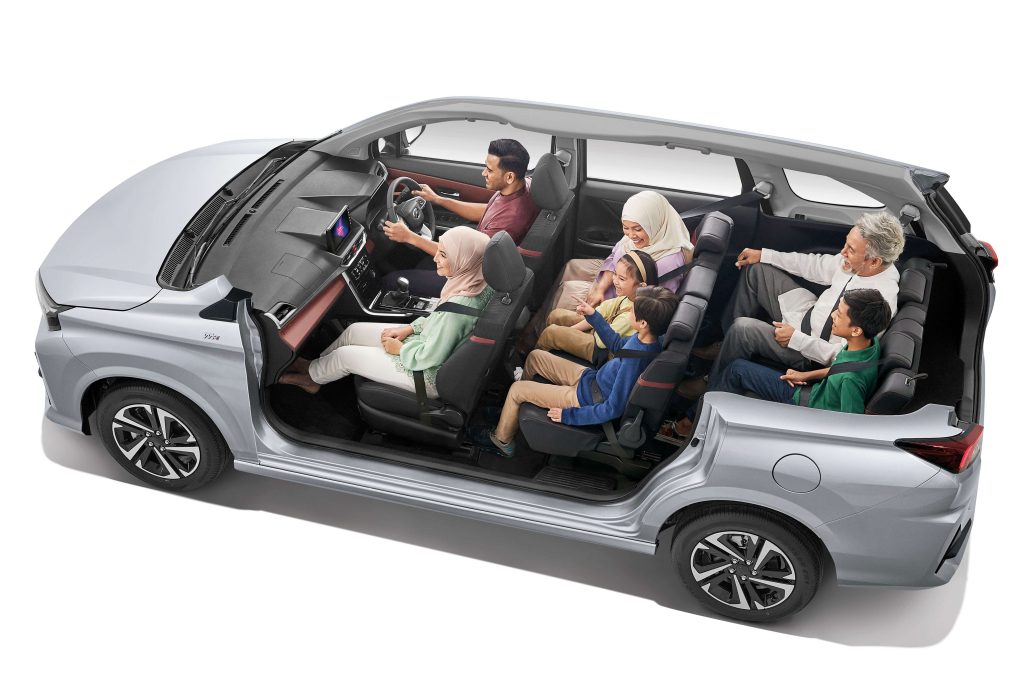

• Cabin Versatility: One-touch tumble and slidable 2nd-row seats (60:40 split); fold-flat 3rd-row seats (50:50 split).

5. In-Depth Variant Hierarchy & Differences

  1.5 X (Base) ──────────────► 1.5 H (Mid) ──────────────► 1.5 AV (Flagship)
  [15" Alloys, Drum Brakes]    [Adds 16" Two-Tone Alloys,  [Adds Full Level 2 ADAS:
  [Manual Handbrake]            ADB Matrix Headlamps,       ACC Stop & Go, LKC, BSM,
  [6 Airbags Standard]          7" TFT MID, 9" Screen,      RCTA, 360° PVM, Rear Discs,
  [Base PSDA (AEB, LDW)]        Drive Modes, Front Sonar]   EPB + Auto Hold, Dashcam]

1. Perodua Alza 1.5 X

• Drivetrain: 1.5L 2NR-VE Dual VVT-i (106 PS / 138 Nm) + D-CVT with Eco Idle.
• Exterior: LED headlights with Follow-me-home and Leaving-home functions, manual headlight leveling, body-coloured rear roof spoiler, silver front grille bar, power-adjustable side mirrors with turn signals (manual fold), 15-inch silver alloy wheels with 185/65 R15 tires.
• Cockpit: Urethane steering wheel with tilt adjustment, analogue instrument cluster with 4.2-inch monochrome LCD multi-info display, push-button start, front digital air-conditioning with 2 memory presets, dedicated rear passenger roof-mounted air-conditioning blower with manual fan switch, fabric upholstery.
• Infotainment: Standard non-touchscreen audio head unit with Bluetooth, USB, and 4 speakers.
• Safety (Standard Class-Leading Suite):6 SRS Airbags (Dual front, front side, full-length curtain airbags), Vehicle Stability Control (VSC), Traction Control (TRC), ABS with EBD and Brake Assist (BA), Hill-Start Assist (HSA), rear parking sensors. Forward stereo camera suite enables Advanced Safety Assist (ASA): Pre-Collision Warning (PCW), Autonomous Emergency Braking (AEB / Pre-Collision Braking), Pedal Misoperation Control (PMC), Front Departure Alert (FDA), Lane Departure Warning (LDW), Lane Departure Prevention (LDP), and Auto High Beam (AHB).

2. Perodua Alza 1.5 H

• Upgrades over 1.5 X:
  • Chassis & Exterior: 16-inch two-tone machined alloy wheels (195/60 R16 tires), chrome front grille highlights, gloss black B-pillar wrap, power-retractable auto-folding side mirrors, rear window demister.
  • Lighting Tech: Auto ON/OFF headlamps, LED front fog lamps, sequential front LED turn indicators, and Adaptive Driving Beam (ADB) with matrix LED auto-masking.

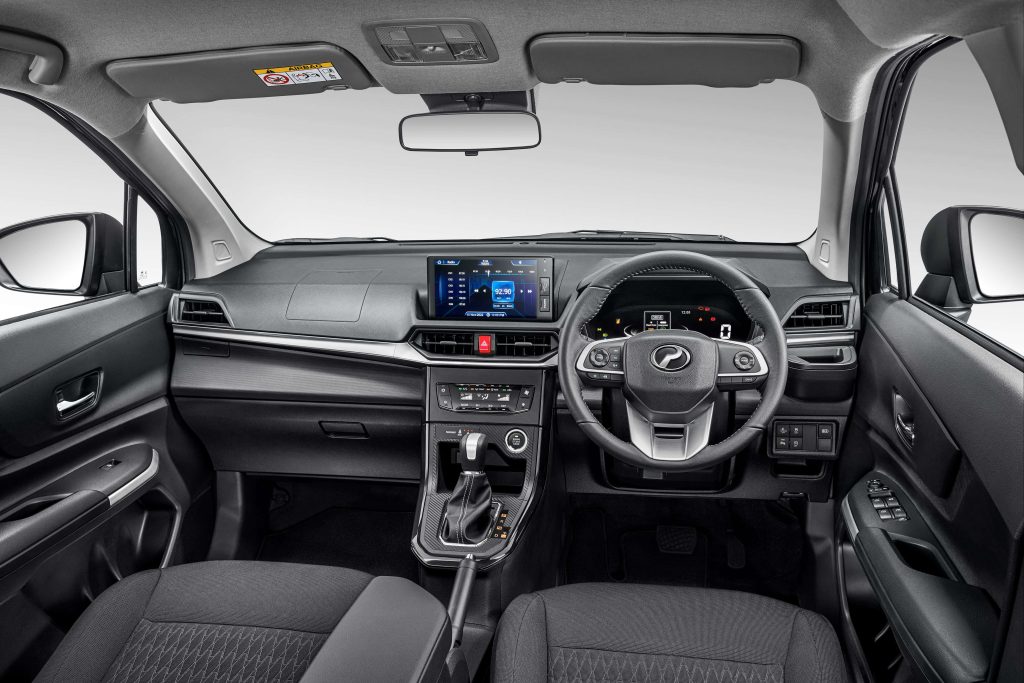

  • Driver Cockpit & Dynamics:7.0-inch full-colour TFT digital instrument cluster with customizable layouts; steering-mounted Drive Mode Selector (Eco, Normal, Power).
  • Infotainment & Audio: Floating 9.0-inch capacitive touchscreen Display Audio unit with Android phone mirroring; upgraded to 6-speaker sound setup (adds front A-pillar tweeters).
  • Convenience & Parking: Keyless smart entry via electrostatic touch door sensor, front corner clearance parking sensors, reverse parking camera, second-row center fold-down armrest.

3. Perodua Alza 1.5 AV (Range-Topping Flagship)

• Upgrades over 1.5 H:
  • Chassis & Braking Upgrades:Rear solid disc brakes and Electronic Parking Brake (EPB) with Auto Brake Hold.
  • Full Level 2 Semi-Autonomous Driving (PSDA Suite):
    • Adaptive Cruise Control (ACC): Full-speed radar/camera tracking with Stop, Hold & Go functionality.
    • Lane Keep Control (LKC): Active steering torque centering assist within lane markings.
    • Blind Spot Monitor (BSM): Wing mirror optical indicators.
    • Rear Cross Traffic Alert (RCTA): Reversing perimeter cross-traffic radar detection.
    • 360-Degree Panoramic View Monitor (PVM): Surround-view parking cameras with split bird’s-eye display.

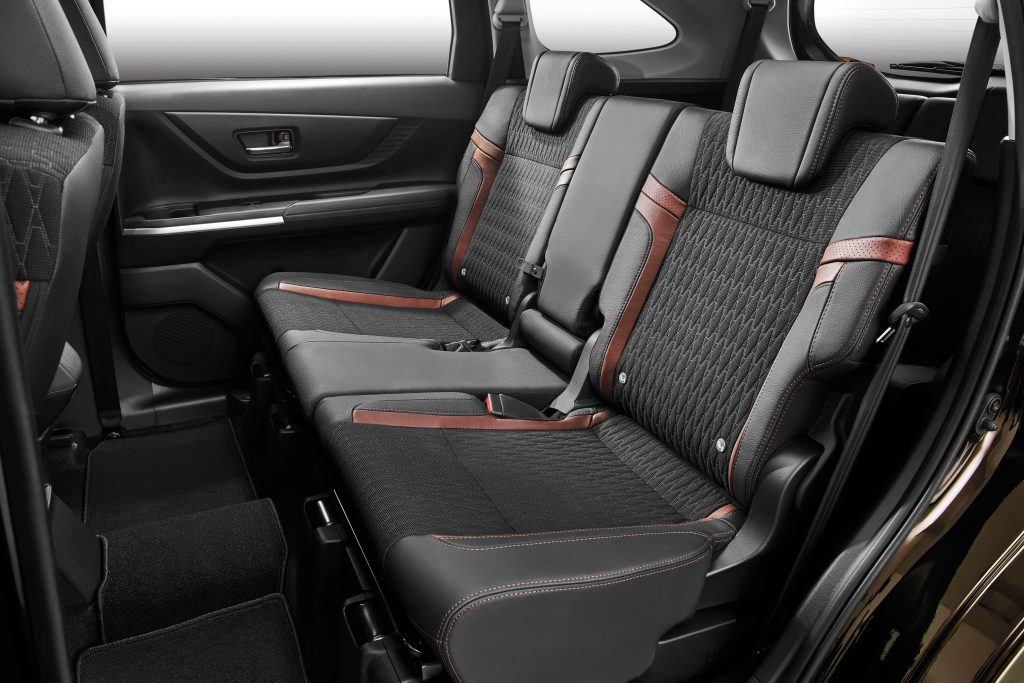

  • Cabin Luxury & Trim: Two-tone black and dark burgundy semi-leather upholstery, two-tone soft-padded dashboard and front door cards, front center console soft-padded armrest.
  • Infotainment Connectivity: Upgraded 9.0-inch touchscreen interface supporting wired Android Auto integration.
  • Integrated Hardware: Factory Front Digital Video Recorder (DVR / Dashcam) and OEM security/solar window tint film.

6. Comprehensive Variant Spec Matrix

Feature / Hardware Spec	1.5 X	1.5 H	1.5 AV
Engine Architecture	1.5L 4-Cyl Dual VVT-i	1.5L 4-Cyl Dual VVT-i	1.5L 4-Cyl Dual VVT-i
Transmission Type	D-CVT	D-CVT	D-CVT
Rear Brakes	Drum Brakes	Drum Brakes	Solid Disc Brakes
Parking Brake	Manual Handbrake	Manual Handbrake	Electronic (EPB) + Auto Hold
Drive Modes (Eco/Norm/Power)	No	Yes	Yes
Wheel & Tire Spec	15″ Alloy (185/65 R15)	16″ Two-Tone (195/60 R16)	16″ Two-Tone (195/60 R16)
Ground Clearance	150 mm	160 mm	160 mm
Headlights	LED (Auto High Beam)	Adaptive Driving Beam (ADB)	Adaptive Driving Beam (ADB)
Front Turn Indicators	Standard LED	Sequential LED	Sequential LED
Side Mirrors	Electric (Manual Fold)	Power Auto-Retractable	Power Auto-Retractable
Instrument Cluster	Analogue + 4.2″ LCD	7.0″ TFT Digital Display	7.0″ TFT Digital Display
Infotainment Screen	Non-Touch 2-DIN	9.0″ Display Audio	9.0″ Screen (Android Auto)
Speakers	4 Speakers	6 Speakers (with Tweeters)	6 Speakers (with Tweeters)
Upholstery	Fabric	Fabric	Two-Tone Semi-Leather
Airbags	6 Airbags	6 Airbags	6 Airbags
Basic ASA (AEB, LDW, LDP)	Standard	Standard	Standard
Adaptive Cruise Control (ACC)	No	No	Yes (Full Speed + Stop/Go)
Lane Keep Control (LKC)	No	No	Yes
Blind Spot (BSM / RCTA)	No	No	Yes (Rear Radar)
Parking Camera	None	Reverse Camera	360° Panoramic Monitor (PVM)
Factory Dashcam (DVR)	No	No	Standard
Kerb Weight	1,145 kg	1,155 kg	1,170 kg

7. Benchmarking & Efficiency Metrics

Calculated Engineering Metrics

• Power-to-Weight Ratio (1.5 X): 92.57 PS / Metric Ton (68.12 kW / Ton)
• Power-to-Weight Ratio (1.5 AV): 90.59 PS / Metric Ton (66.66 kW / Ton)
• Weight-to-Power Ratio (1.5 AV): 11.03 kg / PS (15.00 kg / kW)
• Torque-to-Weight Ratio (1.5 AV): 117.94 Nm / Metric Ton

Certified Efficiency Standards

• Rated Fuel Consumption (MDC Cycle):22.0 km/L (4.55 L/100 km) in Malaysian Driving Cycle with Eco Idle
• Rated Fuel Consumption (NEDC Cycle): 18.9 km/L (5.29 L/100 km)
• Theoretical Cruising Range: Approximately 946 km on a single 43 L fuel tank (MDC standard)

8. Comparative Segment Matrix: Compact 7-Seater MPVs

Engineering Parameter	Perodua Alza 1.5 AV	Toyota Veloz 1.5 AT	Mitsubishi Xpander 1.5
Platform	DNGA-B (Low-Rider)	DNGA-B (High-Rider)	Reinforced B-Segment Unibody
Engine Configuration	1.5L 4-Cyl (2NR-VE)	1.5L 4-Cyl (2NR-VE)	1.5L 4-Cyl MIVEC (4A91)
Power Output	106 PS @ 6,000 RPM	106 PS @ 6,000 RPM	105 PS @ 6,000 RPM
Torque Output	138 Nm @ 4,200 RPM	138 Nm @ 4,200 RPM	141 Nm @ 4,000 RPM
Transmission Type	Split-Gear D-CVT	Split-Gear D-CVT	4-Speed Automatic (4AT)
Ground Clearance	160 mm (Car-like)	205 mm (SUV-like)	225 mm (Class-Highest)
Rear Brakes	Solid Discs	Solid Discs	Mechanical Drums
Parking Brake	EPB with Auto Hold	EPB with Auto Hold	Mechanical Handbrake / EPB
Level 2 ADAS	Full Suite (ACC, LKC, BSM)	Full Suite (TSS)	None
Airbags	6 Airbags	6 Airbags	2 Airbags
Cargo Space (3rd Row Down)	498 Litres	498 Litres	495 Litres
Fuel Economy (Claimed)	22.0 km/L (MDC)	~18.8 km/L	~14.5 km/L
