Executive Overview & Vehicle Identity
- Segment: B-Segment Compact Crossover / SUV
- Platform Architecture: Reinforced Global B-Segment Platform (Rigid Unibody Structure)
- Internal Generation Code: GR1W
- Design Philosophy: “Silky & Solid” Dynamic Shield Architecture
- Assembly / Origin: Cikarang, Indonesia / Pekan, Malaysia (CKD)
- Trim Hierarchy: Urban, Exceed, Ultimate
MITSUBISHI XFORCE (GR1W)
┌─────────────────────────────────────────────────────────────────┐
│ ENGINE: 1.5L 4A91 MIVEC 4-Cyl DOHC 16V (77 kW / 141 Nm) │
│ GEARBOX: High-Efficiency Stepless CVT + Step-Shift Logic │
│ CHASSIS: 222 mm Ground Clearance | Front MacPherson / Rear Torsion│
│ DYNAMICS: Integrated Active Yaw Control (AYC) + 4 Drive Modes │
│ AUDIO: 8-Speaker Dynamic Sound Yamaha Premium Coaxial Suite │
└─────────────────────────────────────────────────────────────────┘1. Powertrain & Combustion Architecture
The Mitsubishi Xforce is equipped with the naturally aspirated 1.5-litre 4A91 MIVEC 4-cylinder engine, designed for high durability, low maintenance overhead, and broad low-to-mid-range torque response tailored for ASEAN urban and rural terrains.
[Electronic Throttle] ──► 16V DOHC Pentroof Head (10.5:1 CR) ──► 77 kW (105 PS) @ 6,000 RPM
[Multi-Point MPI] ──► 75.0 mm × 84.8 mm (Long-Stroke) ──► 141 Nm @ 4,000 RPM- Engine Code: Mitsubishi 4A91 MIVEC
- Cylinder Configuration: In-line 4-cylinder, transverse front-mounted
- Displacement: 1,499 cc (1.50 Litres)
- Bore x Stroke: 75.0 mm x 84.8 mm (Under-square / long-stroke geometry)
- Bore-to-Stroke Ratio: 0.88 (Optimized for low-RPM torque generation)
- Compression Ratio: 10.5:1
- Valvetrain: Double Overhead Camshaft (DOHC), 4 valves per cylinder (16 valves total), timing chain driven with Mitsubishi Innovative Valve timing Electronic Control (MIVEC) on the intake cam
- Fuel Delivery: Multi-Point Electronic Port Fuel Injection (MPI)
- Cylinder Block / Head Material: High-pressure die-cast aluminum alloy cylinder block and cylinder head
- Maximum Power Output: 77 kW (105 PS / 103 bhp) @ 6,000 RPM
- Maximum Torque Output: 141 Nm (104 lb-ft) @ 4,000 RPM
- Specific Power Output: 51.37 kW/L (70.05 PS/L)
- Specific Torque Output: 94.06 Nm/L
2. Transmission, Driveline & Active Yaw Control (AYC)
The Xforce features an engineered front-wheel-drive dynamics suite combining a high-ratio CVT with brake-vectoring Active Yaw Control (AYC) and terrain-specific driving modes.
Engine ──► Torque Converter ──► Steel Belt CVT ──► Open Diff + Brake-AYC Vectoring ──► Wheels
│
┌───────────────────────────────────────────┴──────────────────────────┐
▼ ▼ ▼ ▼
NORMAL MODE WET MODE GRAVEL MODE MUD MODE
Balanced Throttle/AYC Anti-Hydroplane AYC High-Slip Traction Deep Throttle- Transmission Type: High-Efficiency Continuously Variable Transmission (CVT)
- Shift Logic: Adaptive Step-Shift programming (simulates stepped gear changes under aggressive wide-open throttle inputs to eliminate CVT rubber-banding)
- Drivetrain Layout: Front-Engine, Front-Wheel Drive (FF)
- Active Yaw Control (AYC):
- Integrates wheel-speed, steering-angle, yaw-rate, and lateral G-sensors to apply micro-braking forces to the inside front wheel during cornering.
- Reduces understeer and tightens cornering lines without driver intervention.
- 4-Mode Drive Selector Matrix:
- Normal Mode: Standard urban baseline balancing engine revs, EPS weighting, and standard AYC intervention.
- Wet Mode: Specifically tuned for tropical downpours; increases steering resistance and applies aggressive AYC brake-slip suppression to prevent hydroplaning and loss of traction during sudden puddles.
- Gravel Mode: Increases traction control thresholds to permit controlled wheelspin and sharpens yaw braking for stable high-speed unpaved gravel tracks.
- Mud Mode: Delays traction control cut-off, allowing wheelspin to clear mud treads while maintaining steady low-end torque delivery.
3. Chassis, Suspension, Geometry & Braking
The chassis is engineered for rough-road durability, featuring an increased caster trail angle, a fast-ratio steering rack, and large-diameter rear shock absorbers.
◄──────────────── 2,650 mm Wheelbase ────────────────►
▲ ┌────────────────────────────────────────────────────┐
21.0° Approach │ 222 mm Ride Height │ 30.5° Departure
▼ └───────┬────┬──────────────────────────┬────┬───────┘ ▼
│ │ 20.5° Ramp-Breakover │ │| Subsystem / Metric | Engineering Specification |
|---|---|
| Front Suspension | Independent MacPherson Strut, high-caster angle geometry, heavy-duty lower wishbones, and anti-roll bar |
| Rear Suspension | Semi-independent Torsion Beam axle with high-capacity trailing arm bushings and enlarged-diameter dampers |
| Front Brakes | 280 mm Ventilated disc brakes with single-piston floating calipers |
| Rear Brakes | 260 mm Solid disc brakes with single-piston calipers and integrated Electric Parking Brake (EPB) |
| Ground Clearance | 222 mm (Class-leading ride height with standard 18-inch wheel fitment) |
| Approach Angle | 21.0 degrees |
| Breakover Angle | 20.5 degrees |
| Departure Angle | 30.5 degrees |
| Steering System | Rack-mounted Electric Power Steering (R-EPS), 5.2 m minimum turning radius |
| Wheel Fitment | 18-inch x 7.0J Two-Tone Machined Alloy Wheels |
| Factory Tire Spec | 225/50 R18 95V (Toyo Proxes CR1 / Dunlop Enasave EC300+) |
| Spare Wheel | Space-saver steel spare wheel |
4. Dimensions, Weights & Packaging
- Overall Length: 4,390 mm
- Overall Width: 1,810 mm
- Overall Height: 1,660 mm
- Wheelbase: 2,650 mm
- Track Width (Front / Rear): 1,560 mm / 1,565 mm
- Kerb Weight: 1,245 kg – 1,250 kg
- Gross Vehicle Weight Rating (GVWR): 1,700 kg
- Fuel Tank Capacity: 42 Litres
- Boot Capacity: 410 Litres (Standard, expandable to >480 Litres via multi-position cargo floor board)
- Rear Seat Utility: 40:20:40 independent split-folding seatbacks with 8-step backrest recline adjustment
- Cabin Storage Storage Points: 21 dedicated storage compartments (including center console cold-air beverage chiller)
5. Electrical Architecture, ADAS & Cockpit Technology

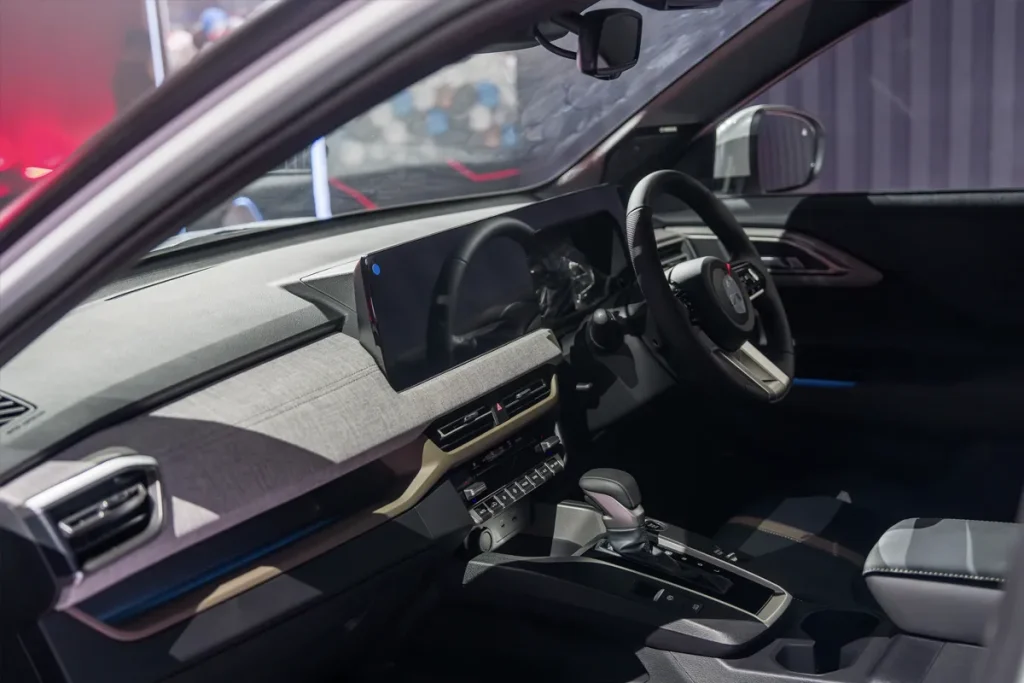

The Xforce features an integrated dual-widescreen monolithic dashboard cockpit, a dedicated off-road telemetry monitor, and a premium audio system co-engineered with Yamaha.
Sensor Hardware & ADAS Matrix (Diamond Sense Suite)
- Forward Sensing: Monocular optical camera + front-facing millimeter-wave radar transceiver
- Rear Sensing: 77 GHz Rear corner radar transceivers + 4x ultrasonic sonar sensors
- Active ADAS Features:
- Adaptive Cruise Control (ACC): Dynamic radar distance maintenance with low-speed stop-and-go follow assist
- Forward Collision Mitigation (FCM / AEB): Autonomous emergency braking with vehicle, cyclist, and pedestrian detection
- Blind Spot Warning (BSW) & Lane Change Assist (LCA): Wing mirror warning indicators + steering wheel vibration
- Rear Cross Traffic Alert (RCTA): Reversing perimeter radar detection with audible and visual warning
- Leading Car Departure Notification (LCDN): Acoustic ping when stationary lead vehicle moves forward
- Auto High Beam (AHB): Automatic optical dipping of LED high-beam matrix

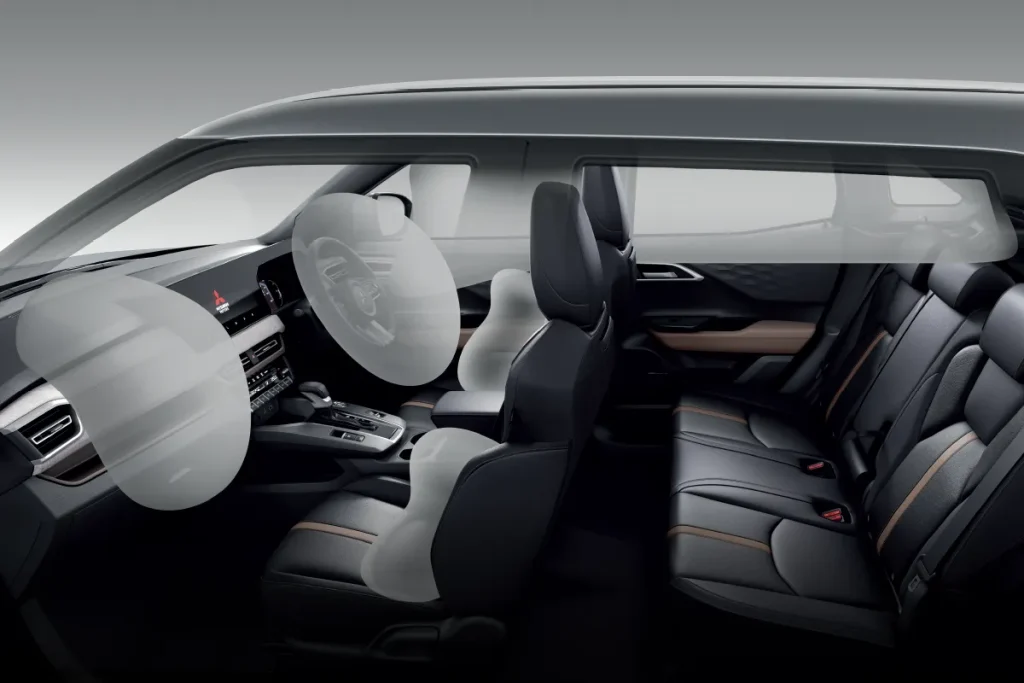

- Passive Safety: 6 SRS Airbags (Dual front, front side thorax, full-length curtain airbags); ISOFIX child anchor brackets
Cockpit Electronics & Telemetry
- Instrument Cluster: 8.0-inch Full TFT digital instrument display with selectable driving themes and real-time AYC torque distribution graphic
- Infotainment Screen: 12.3-inch Smartphone-link Display Audio (SDA) capacitive touchscreen
- Avionics / Off-Road Gauges: Pitch and roll inclinometer, altitude meter, steering angle indicator, G-force monitor, and 4-wheel drive slip display
- Audio Engineering: Yamaha Dynamic Sound Premium (8 Speakers)

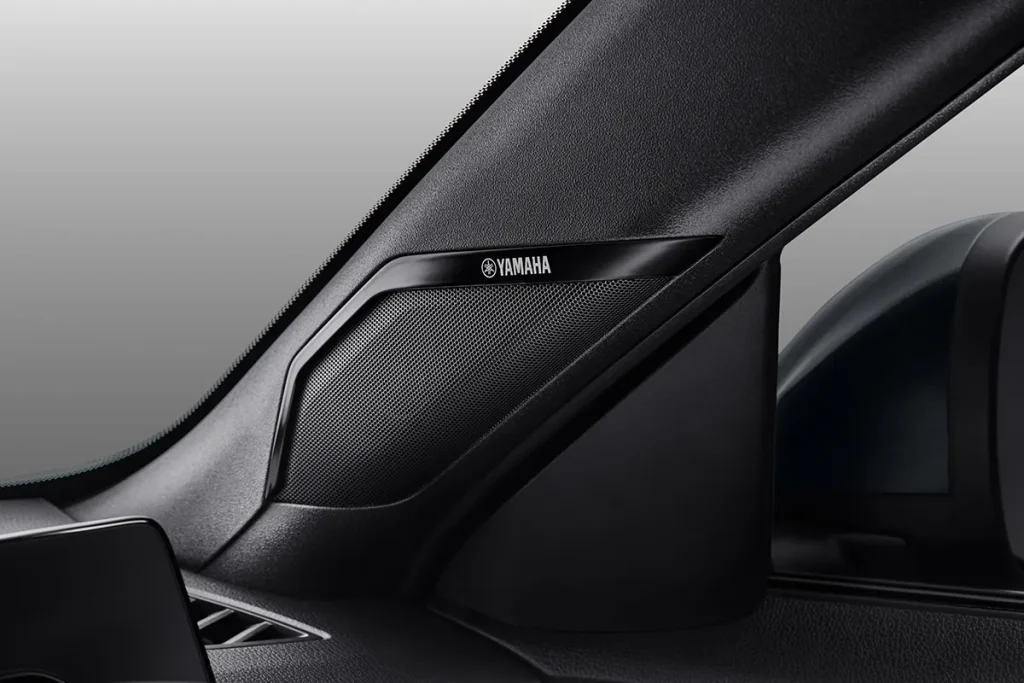

- Coaxial 2-way speakers in front doors, tweeters on A-pillars, wide-range rear door woofers
- 4 Yamaha Sound Profiles: Signature, Powerful, Lively, Relaxing
- Speed Compensated Volume (SCV) with dynamic bass equalization
- Air Management: Dual-zone automatic climate control featuring Panasonic nanoe-X cabin air purification and deodorization
6. Benchmarking & Efficiency Metrics
Calculated Engineering Metrics
- Power-to-Weight Ratio: 84.34 PS / Metric Ton (62.03 kW / Ton)
- Weight-to-Power Ratio: 11.85 kg / PS (16.12 kg / kW)
- Torque-to-Weight Ratio: 113.25 Nm / Metric Ton
Certified Efficiency Standards
- Rated Combined Fuel Consumption: Approximately 6.2 – 6.6 L/100 km (15.1 – 16.1 km/L) in mixed driving cycles
- Theoretical Cruising Range: Approximately 636 km – 677 km on a full 42 L fuel tank
7. Comparative Segment Matrix: B-Segment Crossovers
| Engineering Parameter | Mitsubishi Xforce 1.5 Ultimate | Honda HR-V 1.5 S (NA) | Toyota Yaris Cross 1.5 (ASEAN) |
|---|---|---|---|
| Engine Architecture | 1.5L 4-Cyl MIVEC (4A91) | 1.5L 4-Cyl DOHC i-VTEC (L15ZF) | 1.5L 4-Cyl Dual VVT-i (2NR-VE) |
| Power Output | 105 PS @ 6,000 RPM | 121 PS @ 6,600 RPM | 106 PS @ 6,000 RPM |
| Torque Output | 141 Nm @ 4,000 RPM | 145 Nm @ 4,300 RPM | 138 Nm @ 4,200 RPM |
| Transmission Type | CVT with Step-Shift Logic | Continuous CVT | Split-Gear D-CVT |
| Ground Clearance | 222 mm (Class-Leading) | 196 mm | 210 mm |
| Approach / Departure | 21.0° / 30.5° | 17.8° / 22.1° | 19.0° / 28.0° |
| Chassis Dynamics | Brake AYC + 4 Drive Modes | Agile Handling Assist (AHA) | Standard ESC / VSC |
| Infotainment Screen | 12.3-inch (with Telemetry) | 8.0-inch | 10.1-inch |
| Sound System | 8-Spk Yamaha Dynamic Sound | 4-Speaker Standard | 6-Speaker Pioneer |
| Rear Seat Split | 40:20:40 (8-Stage Recline) | 60:40 (ULTRA Seats) | 60:40 Standard |
| Airbag Count | 6 Airbags | 4 Airbags (Base S) | 6 Airbags |
| Kerb Weight | 1,245 kg | 1,250 kg | 1,175 kg |
