Executive Overview & Vehicle Identity

• Segment: Premium Mid-Size Crossover SUV (D-Segment SAV)
• Platform Architecture: Neue Klasse (Dedicated 800V EV Platform)
• Internal Generation Code: NA5
• Assembly / Origin: Debrecen, Hungary (Fully Imported / CBU)
• Trim Level: 50 xDrive M Sport Pro

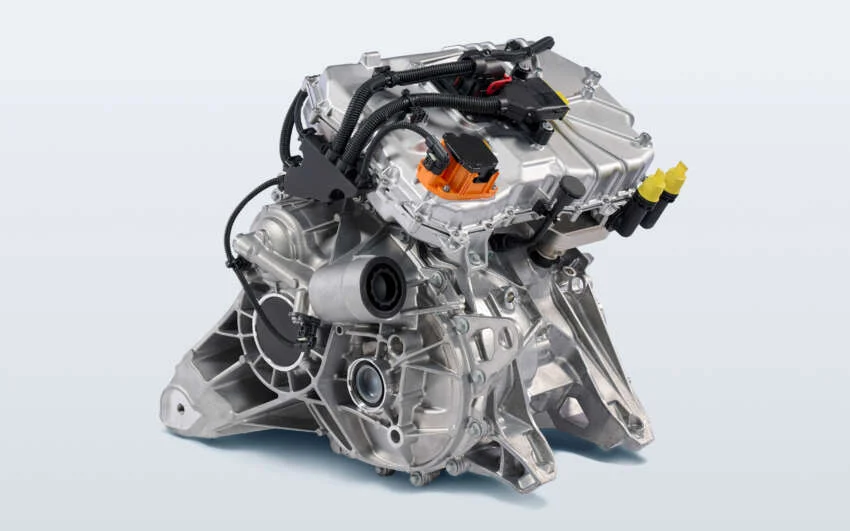

1. Electric Drive Unit (EDU) & Drivetrain Kinematics

The NA5 iX3 introduces BMW’s 6th-generation eDrive technology, transitioning to an advanced Silicon Carbide (SiC) inverter and an intelligent dual-motor layout that maximizes both efficiency and dynamic response.

• Drivetrain Architecture: xDrive Dual-Motor All-Wheel Drive
• Front Motor: Asynchronous Motor (ASM) – 123 kW (167 PS) / 255 Nm
  • Engineering Note: The ASM is utilized at the front axle because it can be entirely de-energized and decoupled when cruising, eliminating drag losses to boost range.
• Rear Motor: Electrically Excited Synchronous Motor (EESM) – 240 kW (326 PS) / 435 Nm
  • Engineering Note: BMW avoids rare-earth permanent magnets here, using an electrical current to excite the rotor instead.
• Maximum System Power: 345 kW (469 PS)
• Maximum System Torque: 645 Nm
• Acceleration (0–100 km/h): 4.9 seconds
• Top Speed: 210 km/h (Electronically limited)
• Energy Recuperation: High-capacity regeneration capable of handling 98% of all braking events (One-Pedal Drive compatible with Soft Stop function).

2. High-Voltage Battery & Charging Dynamics

The NA5 generation makes a massive leap with its native 800-volt architecture and BMW’s new Gen6 cylindrical battery cells, offering a 20% increase in energy density over previous prismatic designs.

• Nominal System Voltage: 800 Volts (with switching matrix to support older 400V stations)
• Traction Battery Capacity: 108.7 kWh (Usable / Nett) / 116.0 kWh (Gross)

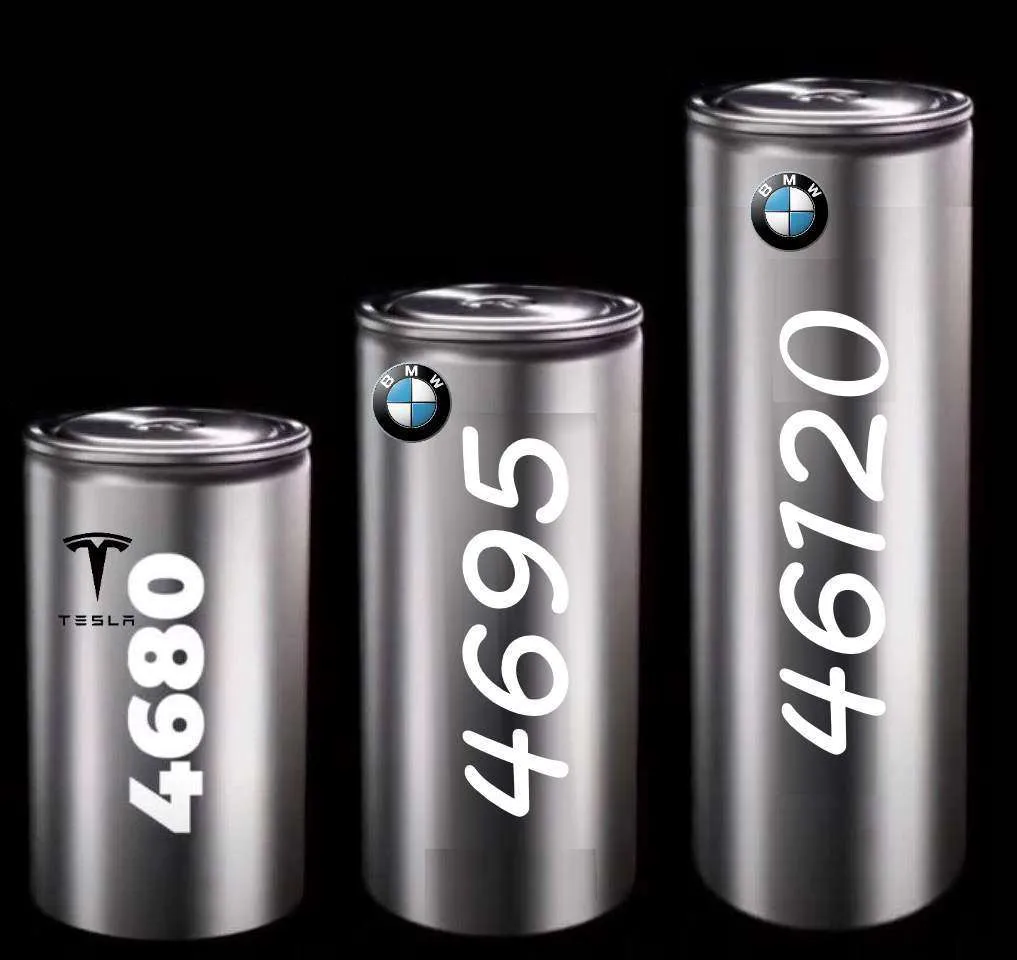

• Cell Chemistry & Format: Nickel Manganese Cobalt (NMC) in a Gen6 Cylindrical Cell-to-Pack layout
• Maximum DC Fast Charging Rate: Up to 400 kW
• DC Charging Time (10% to 80% SoC): 21 minutes (Under optimal conditions)
• DC Replenishment Rate: Adds up to 372 km of WLTP range in just 10 minutes
• Onboard AC Charger: 22 kW 3-Phase AC (Standard for Malaysia spec)
• AC Charging Time (0-100%): 5.5 hours at 22 kW
• Vehicle-to-Grid / Load (V2L): Supports bi-directional AC charging up to 11 kW back into a housing network via compatible wallboxes.

3. Chassis, Suspension & Braking Dynamics

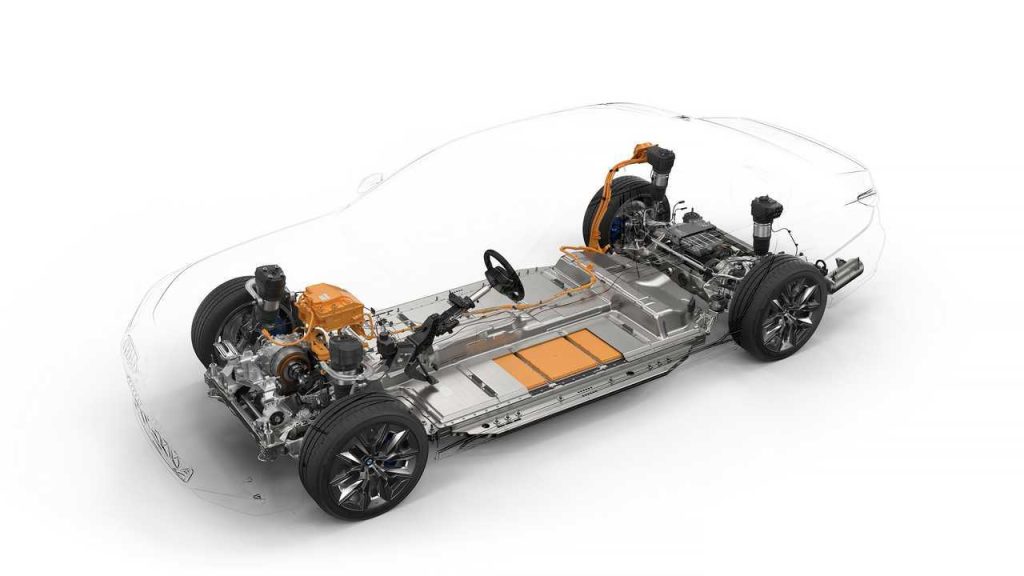

The battery housing forms a structural component of the Neue Klasse platform, significantly lowering the center of gravity and improving torsional chassis rigidity over the outgoing G08 iX3.

Subsystem	Engineering Specification
Braking Hardware	M Sport braking system with larger ventilated discs and fixed red-painted calipers
Wheel Fitment	22-inch Y-Spoke Style 1054 M alloy wheels (Inspired by the Vision Neue Klasse X concept)
Factory Tire Spec	Hankook Ion Evo SUV (EV-specific low rolling resistance, staggered sizing)
Aerodynamic Enhancements	Active air flaps, flush door handles, and completely smooth underbody shielding

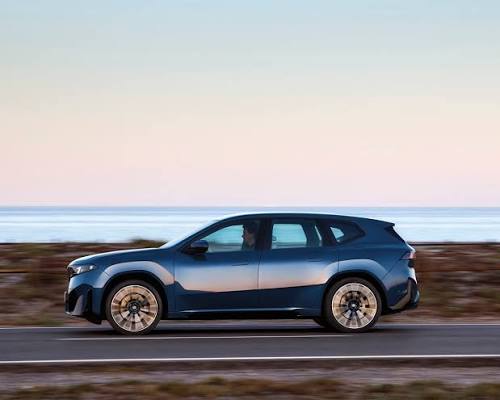

4. Dimensions, Aerodynamics & Packaging

• Overall Length: 4,782 mm
• Overall Width: 1,895 mm
• Overall Height: 1,635 mm
• Wheelbase: 2,987 mm
• Aerodynamic Drag Coefficient: 0.24 Cd (Class-leading for a mid-size SUV)
• Kerb Weight: 2,360 kg (Remarkable packaging; only ~100 kg heavier than the outgoing model despite a 50% larger battery pack)
• Rear Luggage Compartment: 520 Litres (Expandable to 1,750 Litres via 40:20:40 split seats)
• Front Trunk (Frunk): 58 Litres (Optimized for charging cables and tire repair kit)

5. Electrical Architecture, ADAS & Cockpit Electronics

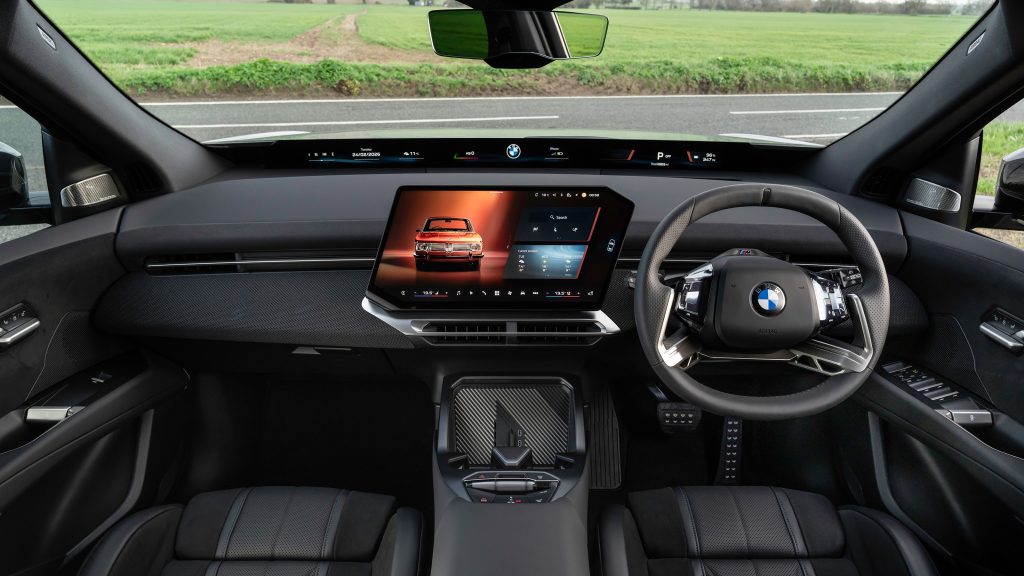

The NA5 completely revolutionizes the BMW cabin, removing the traditional instrument binnacle in favor of a pillar-to-pillar projection system.

Digital Cockpit & Interfaces

• BMW Panoramic Vision: A 43.3-inch ultra-wide display projected across the entire lower width of the windshield (features a polarized-friendly coating).
• Central Display: 17.9-inch Free-Cut design touchscreen
• Operating System: BMW Operating System X (with deeply integrated AI Intelligent Personal Assistant and customized routines).
• Head-Up Display: New 3D Head-Up Display augmenting the Panoramic Vision projection
• Audio System: 430-watt, 13-speaker Harman Kardon sound setup supporting BMW HypersonX virtual soundscapes

Sensor Hardware & ADAS Matrix

• Driving Assistant Plus: Level 2 semi-autonomous driving. Includes Adaptive Cruise Control with Stop & Go, Lane Centring Assist, Curve Speed Reduction, and Traffic Sign Assistant.
• Parking Assistant Professional: Features Remote Park Assist via smartphone, 360-degree high-definition surround cameras, and a 4-way integrated dashcam system (similar to Sentry Mode).

6. Benchmarking & Efficiency Metrics

Certified Efficiency Standards

• Rated WLTP Driving Range (Maximum): Up to 805 km
• Estimated Real-World Range (MY Spec): Approximately 726 km (Range accounts for the heavier, aerodynamically disruptive 22-inch Style 1054 M wheels standard on the Malaysian model).
• Rated Energy Consumption: 15.1 – 17.9 kWh / 100 km (WLTP combined)
• Power-to-Weight Ratio: ~198 PS / Metric Ton

7. Comparative Segment Matrix: Premium Mid-Size EV SUVs

Engineering Parameter	2026 BMW iX3 50 xDrive	Porsche Macan 4 Electric	Tesla Model Y Long Range (AWD)
Platform / Voltage	Neue Klasse / 800V	PPE / 800V	Dedicated EV / 400V
Battery Capacity (Net)	108.7 kWh	95.0 kWh	~75.0 kWh
Power / Torque	469 PS / 645 Nm	408 PS / 650 Nm	390 PS / 510 Nm
Peak DC Charging	400 kW	270 kW	250 kW
Max WLTP Range	805 km (726 km on 22s)	613 km	533 km
0-100 km/h Sprint	4.9 seconds	5.2 seconds	5.0 seconds
Cargo (Boot + Frunk)	578 L (520 L + 58 L)	624 L (540 L + 84 L)	971 L (854 L + 117 L)
Aerodynamics (Cd)	0.24	0.25	0.23
